10.4" Mil-Spec, COTS Rugged LCD Display

Product Description

Our Military Rugged Displays (MRD) are designed with shock and vibration safeguards, provisions for extreme temperature operation, high moisture safeguards, as well as Electromagnetic Environmental Interference protection for use in extreme harsh weather conditions found in many Military Applications.

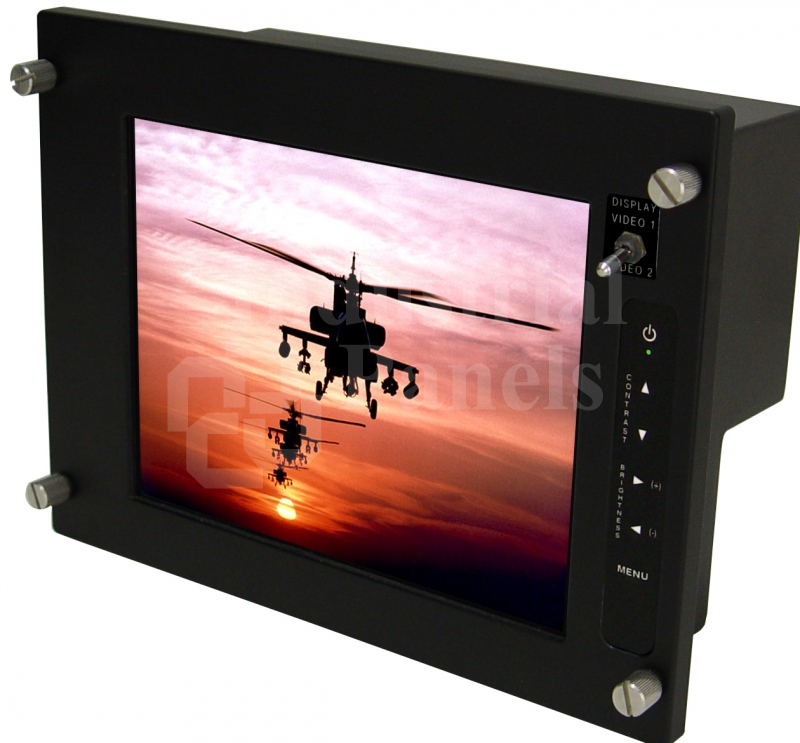

 The MRD1810 is a 10.4” High Brite Monitor and cost effective COTS Military Display, packaged in a rugged panel mount enclosure.  This monitor is designed for use in demanding applications that require graphics, video, and other RGB data on a single, rugged display.  COTS Military Displays typically requires specific configuration customization that is tailored for that specific application, the MRD-1810 Panel Mount Series was designed from the ground up to be is extremely flexible to accommodate all COTS Military LCD Display requirements.

 Target application platforms for the MRD-1810 Series COTS Military LCD Display include: Aircraft Simulator Displays, Ground Vehicles and Mobile Shelters, Military & Aerospace Displays, Surface Ships, US Navy Aircraft Traffic, US Navy AN-UYQ-70 Tactical Workstation.

 Though rugged enough for most Land based and Shipboard Applications, the MRD-1810 10.4” rugged LCD is versatile, as well.  With provisions for Color or Monochrome factory setup Inputs and RS170 / RS343 Video Operation, the MRD-1810 COTS LCD Monitors allow for easy insertion into legacy technologies and reduces obsolescence risks.

Media & Downloads

• 10.4" MIL-SPEC, COTS Rugged LCD Display - Brochure
• 10.4" MIL-SPEC, COTS Rugged LCD Display - Outline DWG
