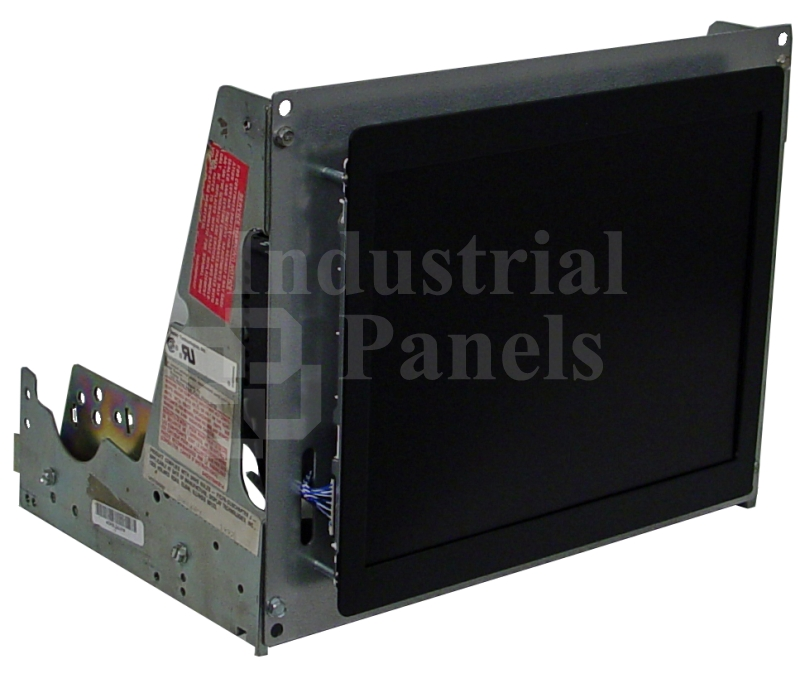

Replacement for Motorola / Display Tech Models: DS3200-357A & DS3200-358A

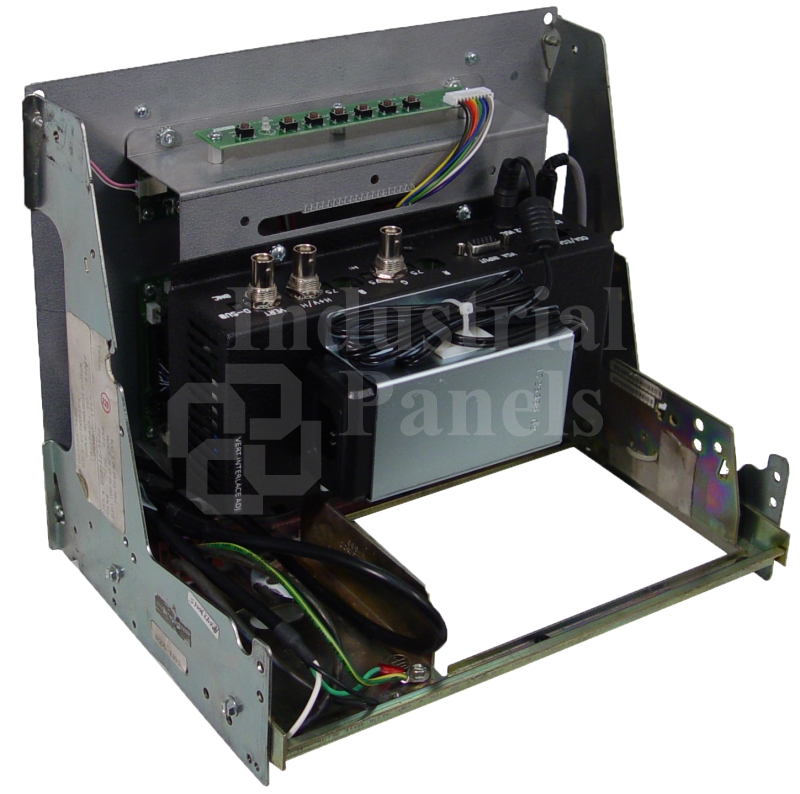

Open-Frame Chassis drops directly into a Motorola DS3200 Series mounting Configuration
Drop Directly into Mounting Holes of the a 12” CRT Monitor
Input Signal Connector: BNC
Special Timing - Standard TTL Input
10.4” TFT-LCD Display with LED Backlight Module
15.75 to 68 KHz Legacy Timings
TTL Video Input Option for EGA, CGA and MDA
Solid State LED Backlight
High Contrast – 500:1
Universal Power Supply with VESA Power Management
Dimensions: 8.83” (H) x 11.20” (W) x 2.49”(D) Kit Only
Product Description
The Motorola DS3200 CRT Monitor Series are obsolete and have become very difficult to replace or to repair. Now you can upgrade your old Motorola DS3200-357A or DS3200-358A monitor with a new LCD monitor, model QES1510-045. Industrial Panels model QES1510-045 is a drop in LCD replacement for the Motorola / Display Tech DS3200-357A and DS3200-358A - 12” Industrial Monochrome Monitor. This LCD unit is designed to be plug and play, and attaches to the existing mounting brackets of your obsolete CRT display. It is compatible with the legacy signal timing present in Allen Bradley 8400 CNC Controls and Interface Connectors
The QES1510-045 is a cost-effective way to extend the useful life of your existing automation investment. Replace your old, low-performance CRT display unit with a new, affordable, quality replacement LCD Flat Panel display.
