20” CRT Replacement Monitors

QES1519-200

Fits on Your Existing 20” CRT Chassis

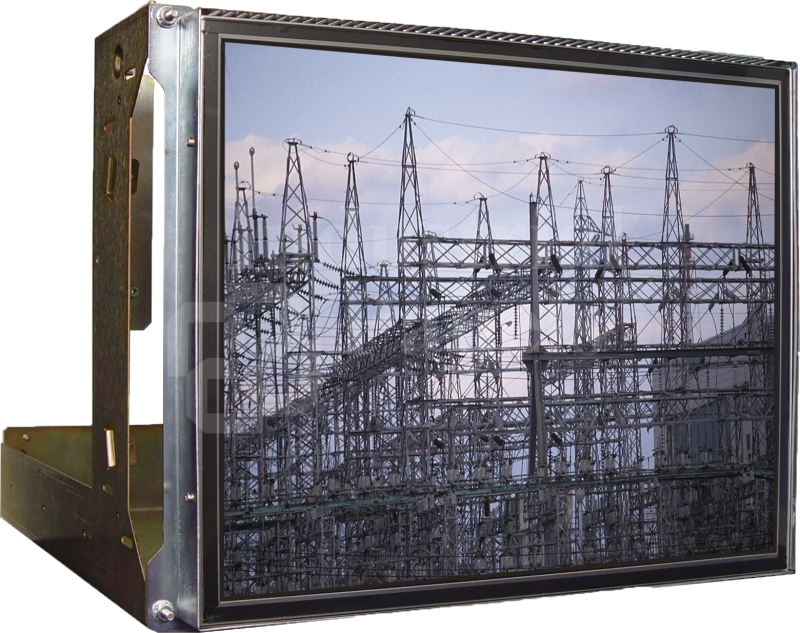

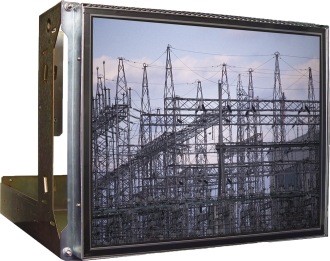

Use our 19” LCD Replacement Display to update your 20” CRT Chassis, ABB Monitors, Bailey Monitors, Honeywell Monitors or any other 20” CRT Legacy Monitors.  This rugged 19” LCD Display was designed to mount in the CRT mounting studs of your existing 20” CRT chassis.  Specifically designed for 20”Console Mount Industrial Monitor that operates with legacy systems.  These units will replace the 20” CRT Chassis monitor and extend the life of CRT based Human Machine interfaces.  Designed to operate at 15.75KHz, CGA, EGA, MDA and any other legacy timing for systems such as ABB, Bailey, and Honeywell Systems. After removal of the old 20” CRT from its existing chassis, this FPD mounts directly to the chassis via the four CRT mounting studs, effectively extending the life of your CNC machine tool, process controller or other CRT based system.

Upgrading your console unit with a TFT LCD Display monitor is a cost effective way of extending the useful life of your existing automation investment.  Replace your old, low-performance unit with a new, affordable, quality replacement LCD Flat Panel. These panels are enclosed in a rugged metal housing and a hardened anti-glare screen protector.

With 15KHz through 68Khz operation, optional TTL video capability, contrast ratios of 500:1 and brightness levels of 250 cd/m2, the QES1519 Series color LCD Display is an excellent choice for many legacy industrial display needs. Standard features such multi-language on-screen display, DDC1/2B Plug and Play, and wide viewing angle capability makes this a versatile LCD Display.

This 19” LCD Flat Panel unit will replace Intercolor Monitors, Conrac Monitors, Microvitec Monitors and KME Monitors.

stock photo
Se Habla Español
Se Habla Español

Para nestros clientes de habla hispana tenemos el numero 800-792-6862 para ofrecerles nuestros servicios de venta y accesoria técnica.

Replacement Monitor
Cross-Reference

Industrial Panels offers a new line of industrial LCD replacements for outdated CRT displays used in many OEM systems.

View Cross-Reference Sheet
