10.4” Color SVGA TFT-LCD Display with LED Backlight Module
15.75 to 100 KHz Legacy Timings
Solid State LED Backlight
Open-Frame Chassis drops directly into the Allen Bradley Plant Floor Terminal 8520-CRTC1
Rugged steel chassis drops directly into the mounting holes of the a 12” color CRT
Strengthen Anti-Reflective Protective Faceplate
Internal Ruggedized Construction
Heavy Duty Cold Roll Steel Chassis
High Contrast – 500:1
Universal Power Supply with VESA Power Management
TTL Video Input Option for EGA, CGA and MDA
Product Description

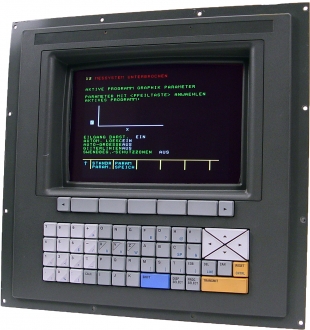

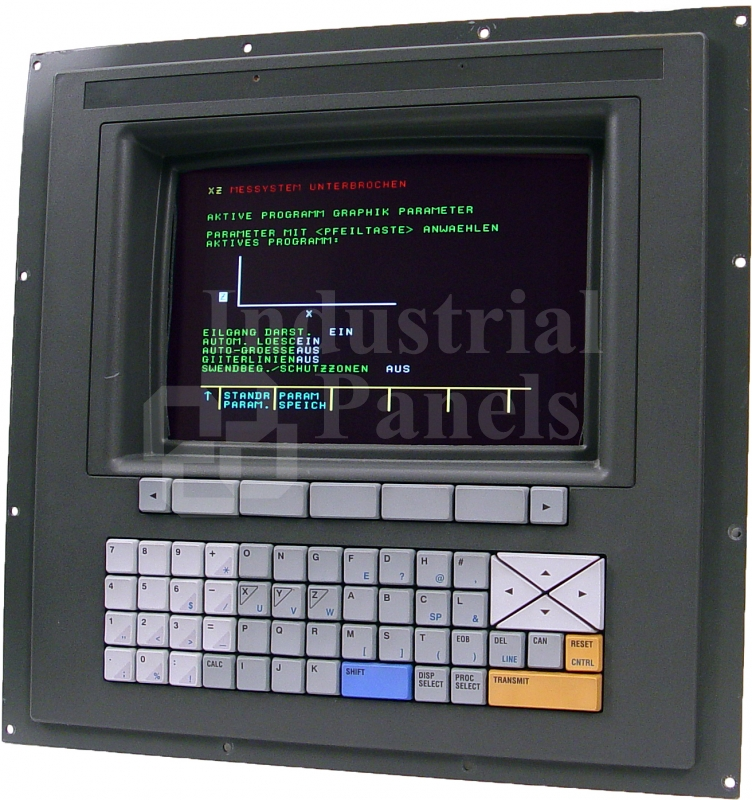

Industrial Panels QES1510-020 is a 10.4 inch LCD Allen Bradley retrofit monitor designed to be a drop-in replacement display for Allen Bradley 8520-CRTC1 Monitor.

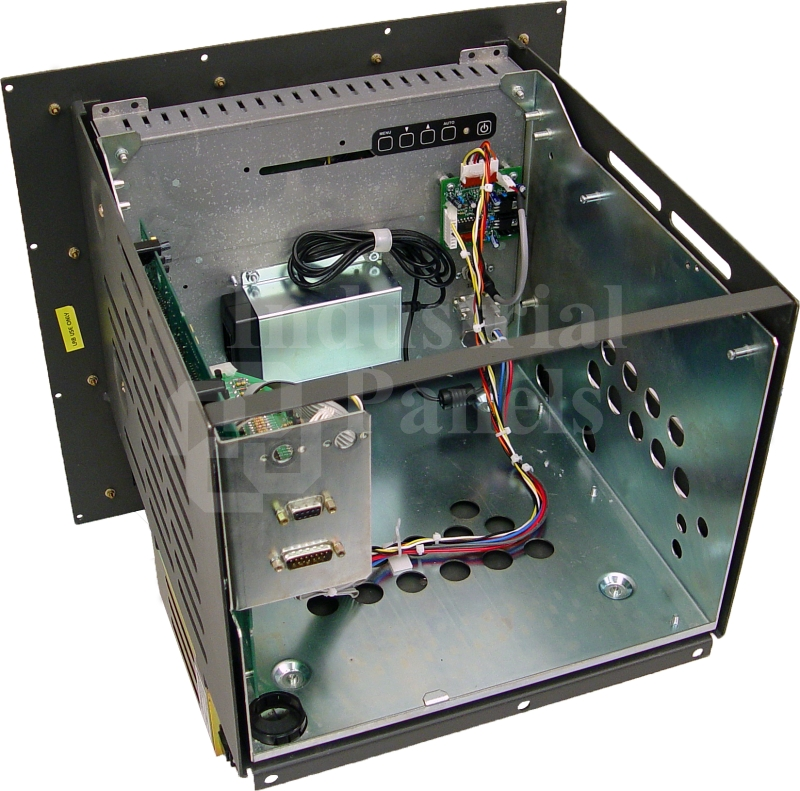

Its rugged, steel chassis is designed to mount into the original CRT mounting holes of the 12” Color CRT Monitor (Catalog # 8520-CRTC1) used in Allen Bradley 9/230 Series & 9/240 Series CNC Machine systems, making it unnecessary to replace the original chassis. The video input of the QES1510-020 Allen Bradley retrofit monitor accepts Differential TTL video signals from the original Allen Bradley 9 Series CNC Machine system with no need for signal adapters of any sort. The QES1510-020 Allen Bradley Retrofit Monitor has been optimized to operate on these and other legacy systems as well. These Retrofit Allen Bradley Monitors are more reliable and perform better than the older 12” Color CRT Monitor, making this versatile LCD monitor an excellent choice for many industrial legacy display systems, as well as your next Allen Bradley Monitor Replacement.
